Table Lift Mechanism, Customize your table with a concealed mechanism, Opening Mechanism Piston

Table Lift Mechanism, Customize your table with a concealed mechanism, Opening Mechanism Piston

$111.28
SKU: RI:651043030

DESCRIPTION

Customize your table with a concealed mechanism

A coffee table is a versatile piece of furniture that effectively combines function and style.
Custom that ordinary table to a practical & functional application.
The table top lifts to be used as a work surface when seated and also reveals a storage compartment beneath.

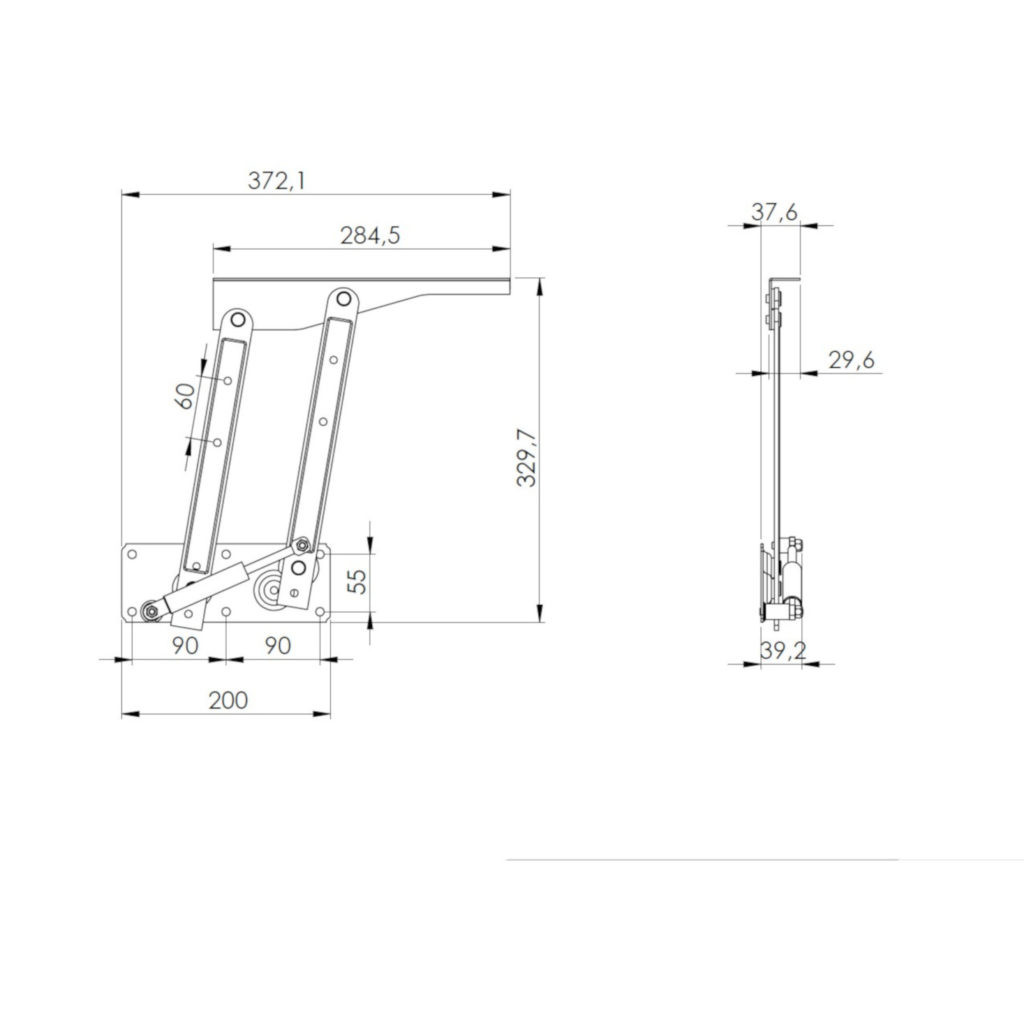

TECHNICAL SPECIFICATIONS

Product №
651043030
Finish
Black (90)
Material
Metal

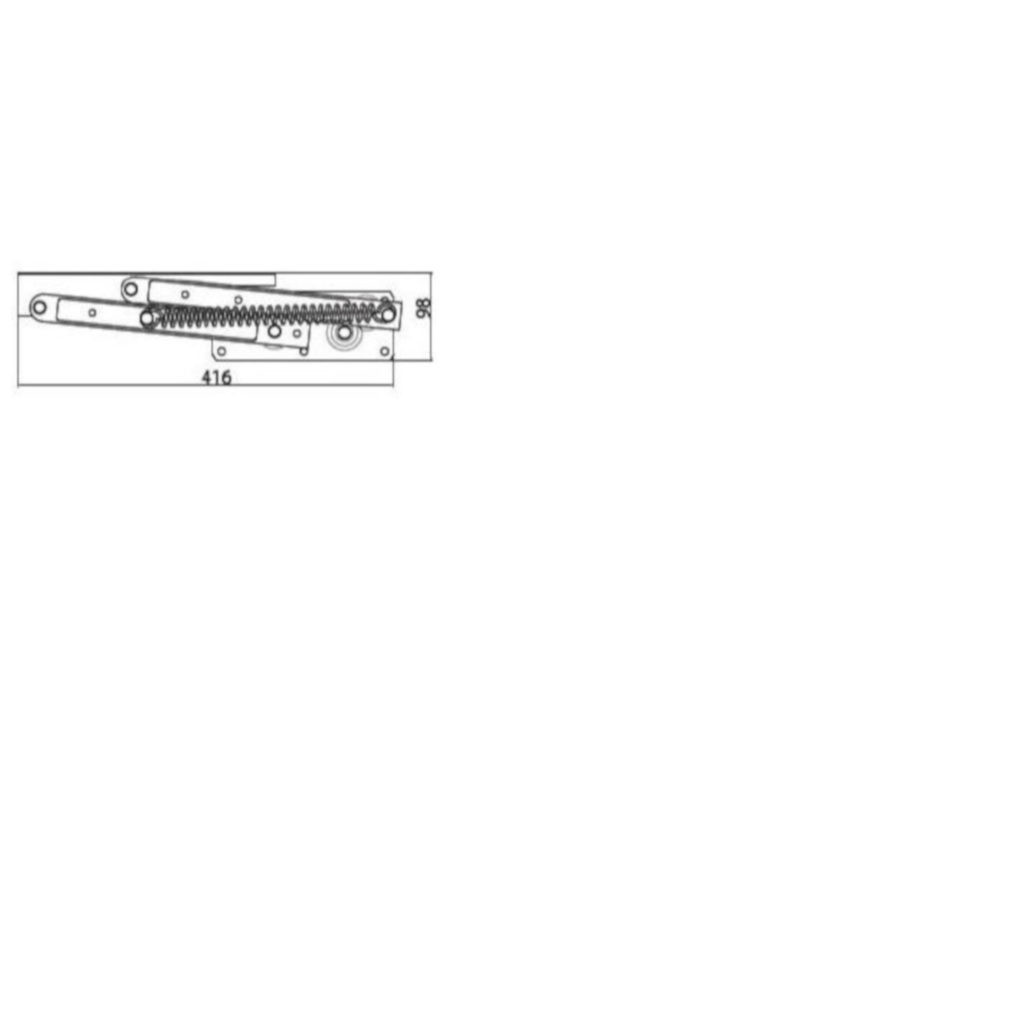

Length
416 mm
Width
98 mm
Expansion Capability
300 mm

ADVANTAGES AND BENEFITS

Mechanism completely concealed when retracted.
Rise of 300 mm (11-13/16")
Lateral travel: 300 mm (11-13/16")
Spring mechanism design for light panel (<8 kg), ideal for small top surface.
Piston mechanism design for medium & heavy panel (<20 kg), ideal solution for large top surface.
Hardware included.
Easy installation.

APPLICATION

Mechanism used to convert a coffee table into a dining, snack or work table.

INCLUDED PRODUCT(S)

Right Mechanism
Left Mechanism
Fastener Plate (2x)
Spring or Piston (2x)
Screws (12x)
Pegs (12x)

IMPORTANT INFORMATION

Do not load more than 25 kg on table when it is at opened position.

Required Product :
Product № 651040010
