PANELPAR 12/22E, Weight Capacity per Door Max. 48 lb

PANELPAR 12/22E, Weight Capacity per Door Max. 48 lb

$73.70
SKU: RI:223528

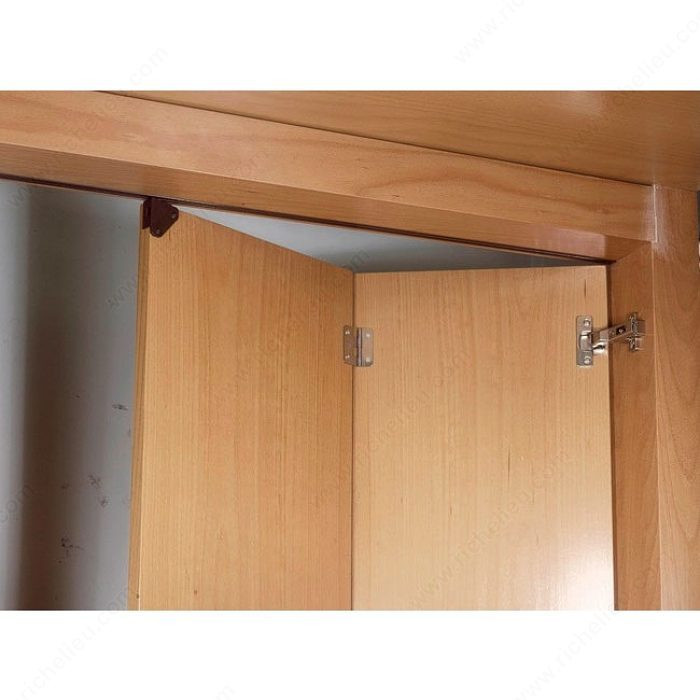

PANEL PAR is the Klein set for installing folding doors flush to the frame in closets, formed by groups of two door leaves. The door leaves slide smoothly over inset PVC tracks using adaptable guides that are located on the top and bottom ends of each group and which maintain a constant bottom separation between the frame and the leaves. The door leaves that are fastened to the over-panel move using box hinges with triple adjustment. The joint between the panels is made using special intermediate Klein hinges, which work to maintain the separation between and alignment of the panels.

Weight Capacity per DoorMax. 48 lb
Typeof DoorWood
Door Thickness16 to 19 mm
Door PositionInset/Inlay
Track MountingRecessed - Inside the Cabinet
Design IntentPantry, Furniture, Cabinet
Number of Doors1
Door Mounting MethodRecessed
Rail Material Plastic
Rail Finish Brown
Rail Length2 m
Drilling Depth12 mm
Drilling35 mm
OperationSingle Fold
Packaging format Bag
