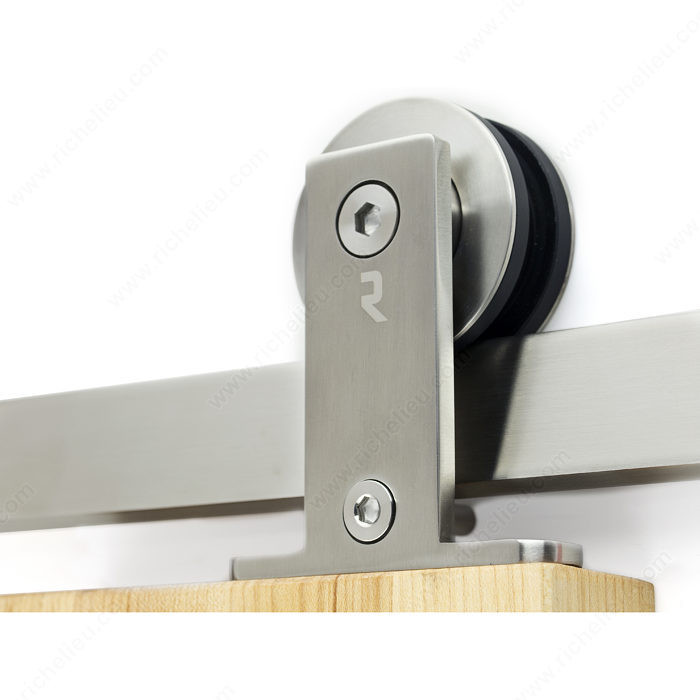

Integrail, Flat bar running rail with z- design connecting ends,
The Integrail top-mounted sliding door hardware provides a functional, versatile and secure sliding door solution with a discreet design!
Our flat bar running rail, with its z-design connecting ends, allows for a virtually seamless operation and the installation of a hidden soft-close system.
A sure-fire easy installation with fixation points pre-drilled in the running rail for 16" centers.
As opposed to being mounted on brackets, the system is affixed directly to the wall through the running rail with the combination of spacing sleeves and our lift-locking pin. It therefore eliminates the risk of your door shifting or coming off the track, rendering your space safe for all.
Door Thickness35 to 45 mm
Weight Capacity per DoorMax. 80 kg
Door PositionIn Front of Wall
Rail Type Flat Bar
Track MountingWall Front Using Brackets
Door Mounting MethodScrew
Roller PositionUpper
Soft-Close Type Both Ends Operation
Number of Doors1
Door Width28 to 34 in
Roller Type Ball Bearing
Rail Length67 7/8 in
Soft-Close MechanismAvailable, Sold Separately
Design IntentStandard Access Door
Groove Needed for Guiding SystemYes
Finish Stainless Steel
Rail Material Stainless Steel
Rail Finish Stainless Steel
Displayed in These ShowroomsMontreal
OperationSingle Sliding
Packaging format Box
